NOYAFA CCTV-Tester, 8 Zoll IPS Touchscreen, IP/CVBS/AHD/TVI/CVI Kamera Tester, 4K Video, PoE/12V/24V Ausgang, TDR Kabellängentest, Kabel-Tracker (optional), WiFi, RS485, NF-IPC728
Product Specification
Marke: NOYAFA
Artikelmaße L x B x H: 29 x 9 x 32,5 cm
Hersteller: NOYAFA
- Umfassende Unterstützung für diverse Videoformate – Unterstützt analoges CVBS, koaxiales HD (AHD/TVI/CVI) bis 8 MP (3840 × 2160), SDI bis 8 MP (optional) sowie IP-Kameras via ONVIF (Rapid ONVIF & ONVIF-XVR), RTSP und HIKVISION SADP. Dekodiert H.265, H.264 und MPEG4 bis 8K. Inklusive HDMI-Eingang (optional) und HDMI-Ausgang zur Bildschirmspiegelung. Ein einziges Gerät für ältere Systeme und moderne 4K-Kamera

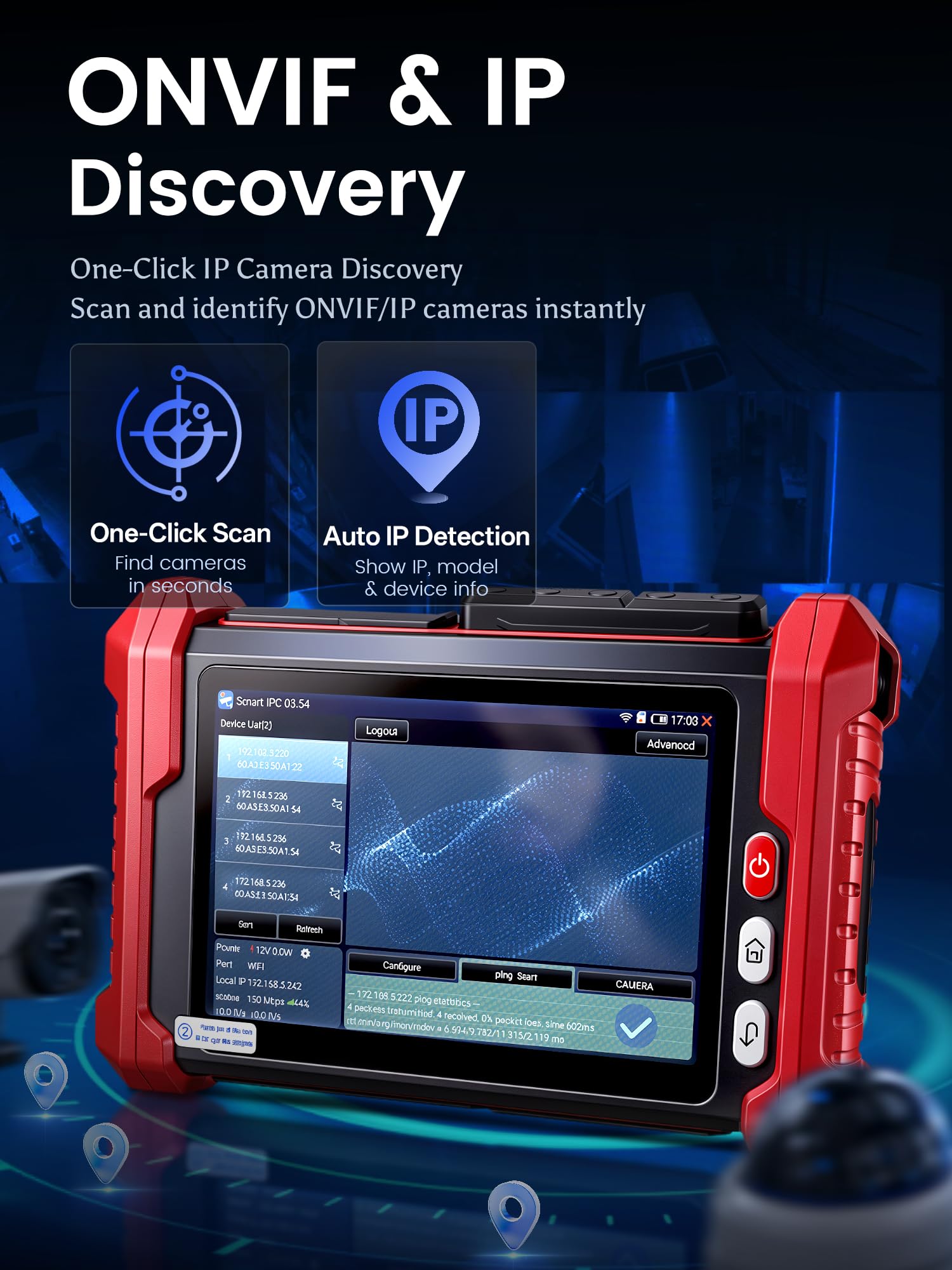

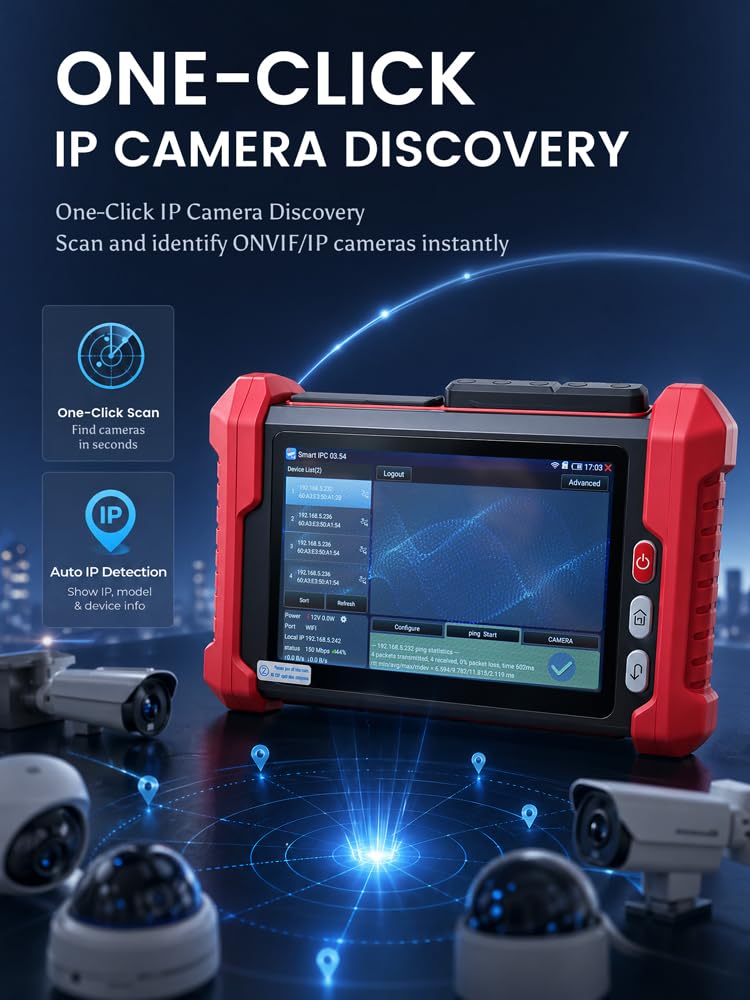

- Smart IP Discovery & Batch Management – IP‑Discovery auto‑scans network segments and changes tester IP to match camera subnet automatically. Rapid ONVIF saves credentials, supports brute‑force password recovery for some models, and ONVIF‑XVR displays up to 32 HIKVISION/DAHUA IP cameras simultaneously. Built‑in browser and RTSP player allow direct web access and custom URL streaming
- Versatile On‑Site Power Outputs – Provides 48V standard PoE (IEEE 802.3af/at) via LAN port to power IP cameras directly, plus DC24V/1A and DC12V/3A ports for non‑PoE cameras, and USB 5V/2A for charging phones. Power Management app toggles outputs safely. Eliminates extra adapters, saving time during field installation and troubleshooting

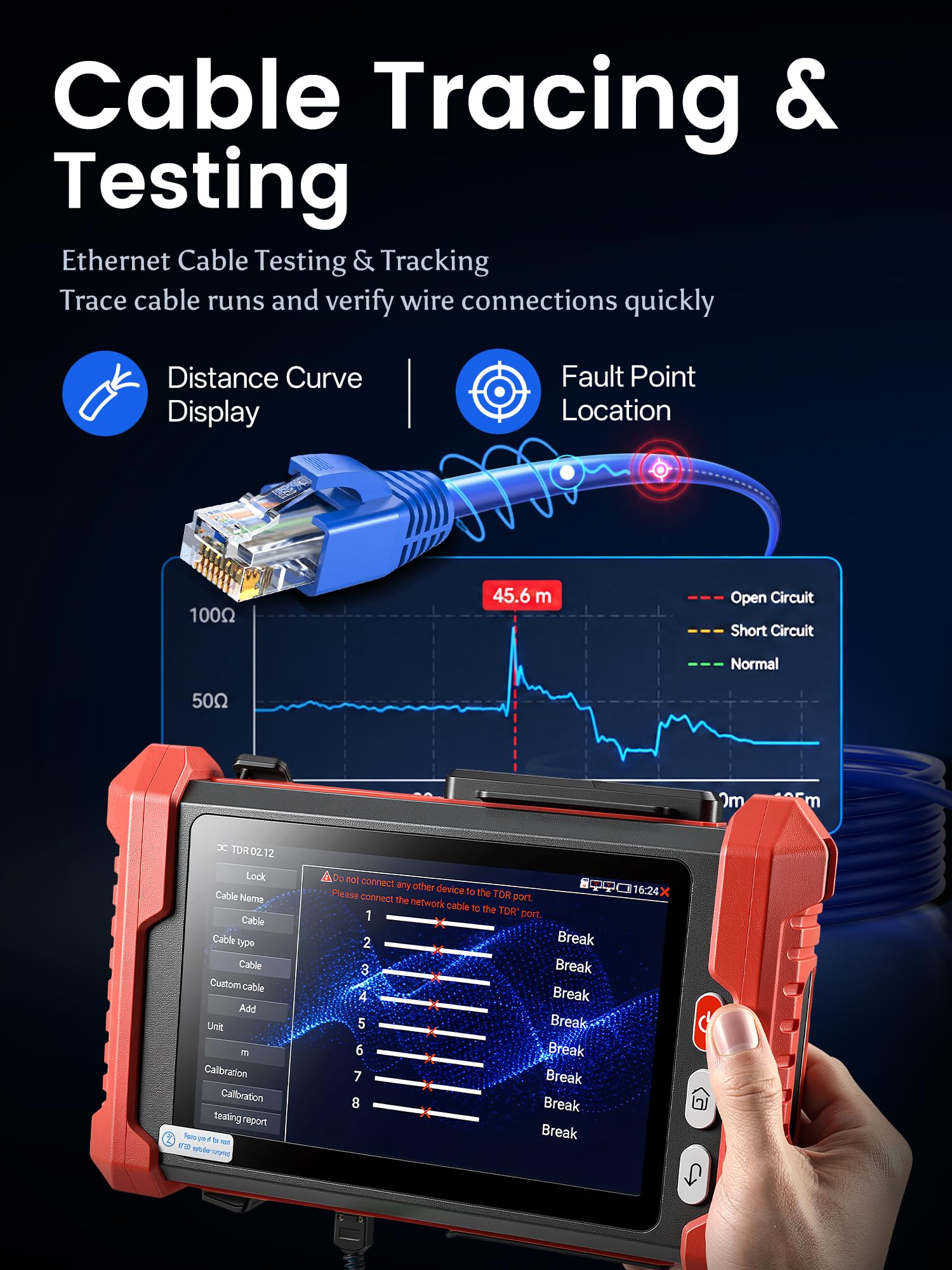

- Complete Cable Testing Suite – TDR breakpoint test measures length and locates faults up to 1500m (optional) for network/BNC/telephone wires. Cable tracker (optional) traces cables up to 3000m in normal, PoE, or coaxial mode. PSE voltage test checks switch output, network cable TDR measures attenuation/impedance, and wire map with port blink identifies faulty connectors and cable ends
- Optical Fiber Tools & Android Smart Platform – Optional OPM supports 6 wavelengths (850/1300/1310/1490/1550/1625nm) and VFL red laser (620nm) with 1Hz/2Hz/continuous modes up to 1000m for fiber inspection. Android OS offers file management, FTP remote access, screen projection, online/local upgrade center, multi‑language support, and adjustable Wi‑Fi, hotspot, brightness, and sleep settings
